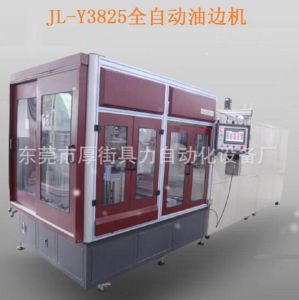

JL—Y3825 全自动油边机


主要用途：适用于手袋、鞋业、皮具、手机套、文件套等相关行业材料的油边

工作范围：最小材料50mm*70mm，最大材料250mm*380mm

主要优点：
1、油边过程无需人工操作，减轻工人负担；

2、油边夹具可根据不同尺寸和形状的材料进行任意调节，在工作范围内，无需更换夹具，使用方便，操作简单；
3、提高工作效率，一人可操作2-3台设备，油边时间约为10s-12s；

4、运行平稳，油边质量高，采用多轴控制系统，伺服电机作为动力，使设备运行平稳可靠，油边的质量更高，减少油边的次数；

5、四工位顺序油边，节省油边等待时间，设备不停歇运行，提高生产效率，可节省人工3-5人；

6、红外线旋转烤箱自动烘干，采用智能温控，烘干效果佳，效率快，自动下料，减轻工人负担。

主要参数：

JL—Y3825 Automatic colouring edge machine

Main application：It is suitable for handbag, shoes, leather product and other interrelated industry colouring edge.

Working range：minimum material 50mm*70mm，maximum material 250mm*380mm

Main feature：
1、The Colouring edge process without manual operation，Lighten the workers' burden；

2、The Colouring edge clamp can be arbitrarily adjusted according to different sizes and shapes of materials，Within the range of work，you no need to replace the champ, it is convenient to use and easy to operate；

3、It can improve work efficiency，one person can operate 2-3 machine, the colouring edge time is about 10s-15s；

4、It has Smooth running，High quality of colouring edge，adopt multi axis control system, use servo motor as power，which can make the colouring edge process more stable and reliable, and the quality of colouring edge is higher，Reduce the number of times of colouring edge；

5、Four station colouring edge in sequence，save the waiting time of colouring edge; Equipment nonstop running，improve production efficiency，Can save labor 3-5 person；

6、The Infrared rotating oven automatic drying，adopt intelligent temperature control，has good drying effect，Fast efficiency，Automatic take out the material，Lighten the workers' burden.

Main parameter：
